Diffusion Model

ChoCho

kycho@math.ncu.edu.tw

NCU Math

2023-10-11

Generator = Distribution

Sample from a data

• Data: \mathcal{D}=\lbrace x_1,x_2,\cdots,x_n \rbrace (x_i 可能有重複).

• Sample from \mathcal{D} \iff 從 \mathcal{D} 隨意挑一個出來.

• Example: \mathcal{D} = \lbrace 1,2,2,3 \rbrace.

  從 \mathcal{D} 重複選取 15 個.

Generator = Distribution

Sample from a mass

• Let p=\lbrace p_i \rbrace_{i=1,\cdots,n} be a mass function with
  • p_i=a_i/N for all i=1,\cdots, n, where
  • a_i\in \mathbb N for all i=1,\cdots,n.
• Sample from p \iff 從 \mathcal{D}=\lbrace \underbrace{1,\cdots,1}_{a_i},\cdots, \underbrace{n,\cdots,n}_{a_n} \rbrace 隨意挑一個出來.
• Example:
  • 骰子 X = a mass function with \begin{aligned} p_i=\mathbf{P}[X=i]=1/6, \end{aligned} for i=1,\cdots, 6.
  • 擲 1 次骰子 X \iff Sample X \iff 從 \mathcal{D}=\lbrace 1,2,3,4,5,6 \rbrace 隨意挑一個出來.

• 重複投 15 次骰子:

Generator = Distribution

Sample from a density

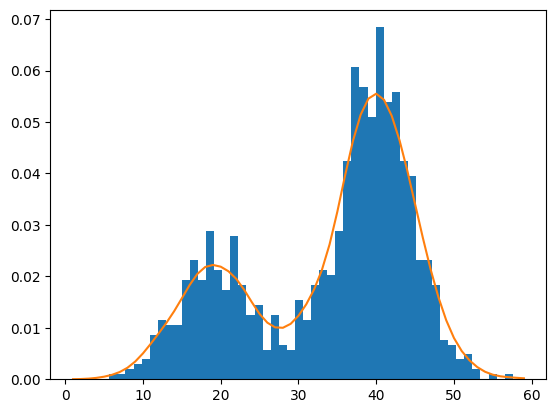

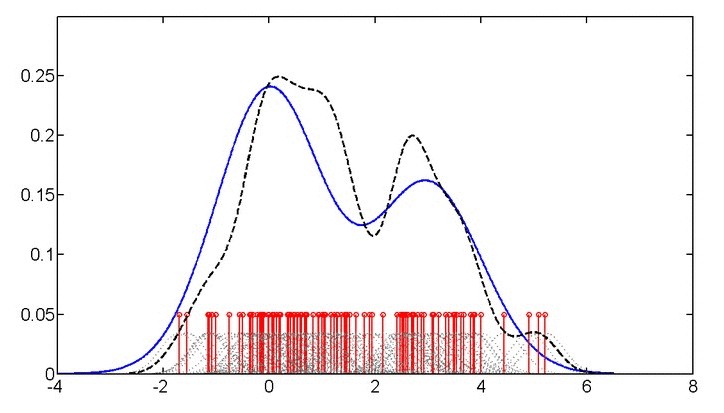

Density estimation.

Example: Sample \mathcal{N}(0,0.01) 666 times.

Example: Sample \mathcal{N}(\mathbf{0},(0.01) \mathbf{I}) in \mathbb R^{32\times 32}.

Generator = Distribution

• An image = an element in \mathbb R^n.
  • An image generator is a distribution in \mathbb R^{n}, and
  • the generated image is a sample from this distribution.

---

Notation

• Let X be a random vector in \mathbb R^n. The \color{red}{\textbf{density}} function of X is defined by \begin{aligned} \mathbf{P}\bigl[ X\in A \bigr] = \int_{x\in A} {\color{red}{f_X}}(x) \mathrm{d}x, \quad \forall A\in \mathcal{B}(\mathbb R^n). \end{aligned}

• f_{X\vert Y}(x\vert y) = \dfrac{f_{X,Y}(x,y)}{f_Y(y)}.

• Since \begin{aligned} f_{X,Y}(x,y) = f_{X}(x) \cdot f_{Y\vert X}(y\vert x), \end{aligned} we can sample (x,y)\sim f_{X,Y}(x,y) by the follows:

  • Sample x\sim f_X(x);
  • Sample y\sim f_{Y\vert X}(y\vert x).

• X_{t:0}:=(X_t,X_{t-1},\cdots,X_1,X_0). Others are the same.

• f_{X_t\vert X_{t-1:0}}(x_t\vert x_{t-1:0}) = q(x_t\vert x_{t-1:0}). Others are the same.

DPM and DDPM

• Diffusion Probabilistic Models (DPM, or Diffusion Models) were first proposed by Sohl-Dickstein et al. (2015).

• We will focus on the Denoising Diffusion Probabilistic Models (DDPM) (Ho, Jain, and Abbeel (2020)).

Denoising Diffusion Probabilistic Models (DDPM)

Table of Contents

• Denoising Diffusion Probabilistic Models (DDPM)

• To determine μ_θ,Σ_θ

• Training and Sampling

• Appendix

Diffusion model

https://makeagif.com/gif/diffusion-water-food-dye-diffusion-project-PwX-YQ

• The name “diffusion” comes from the diffusion process.

• Let q(x_0) be the distribution of our data.

• The main purpose of all generative models is to learn a distribution p_{\theta}(x_0) such that \begin{aligned} p_{\theta}(x_0)\approx q(x_0). \end{aligned}

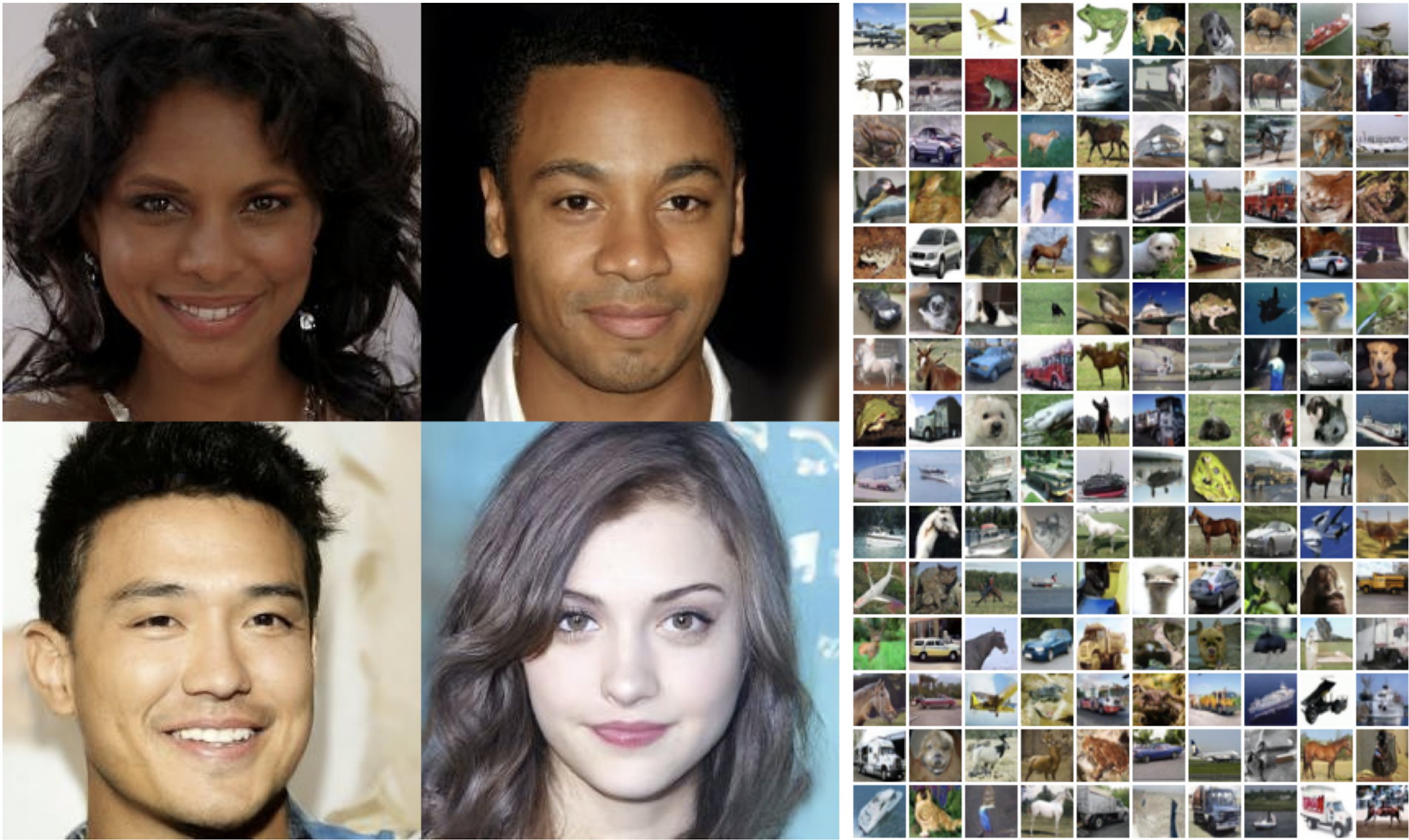

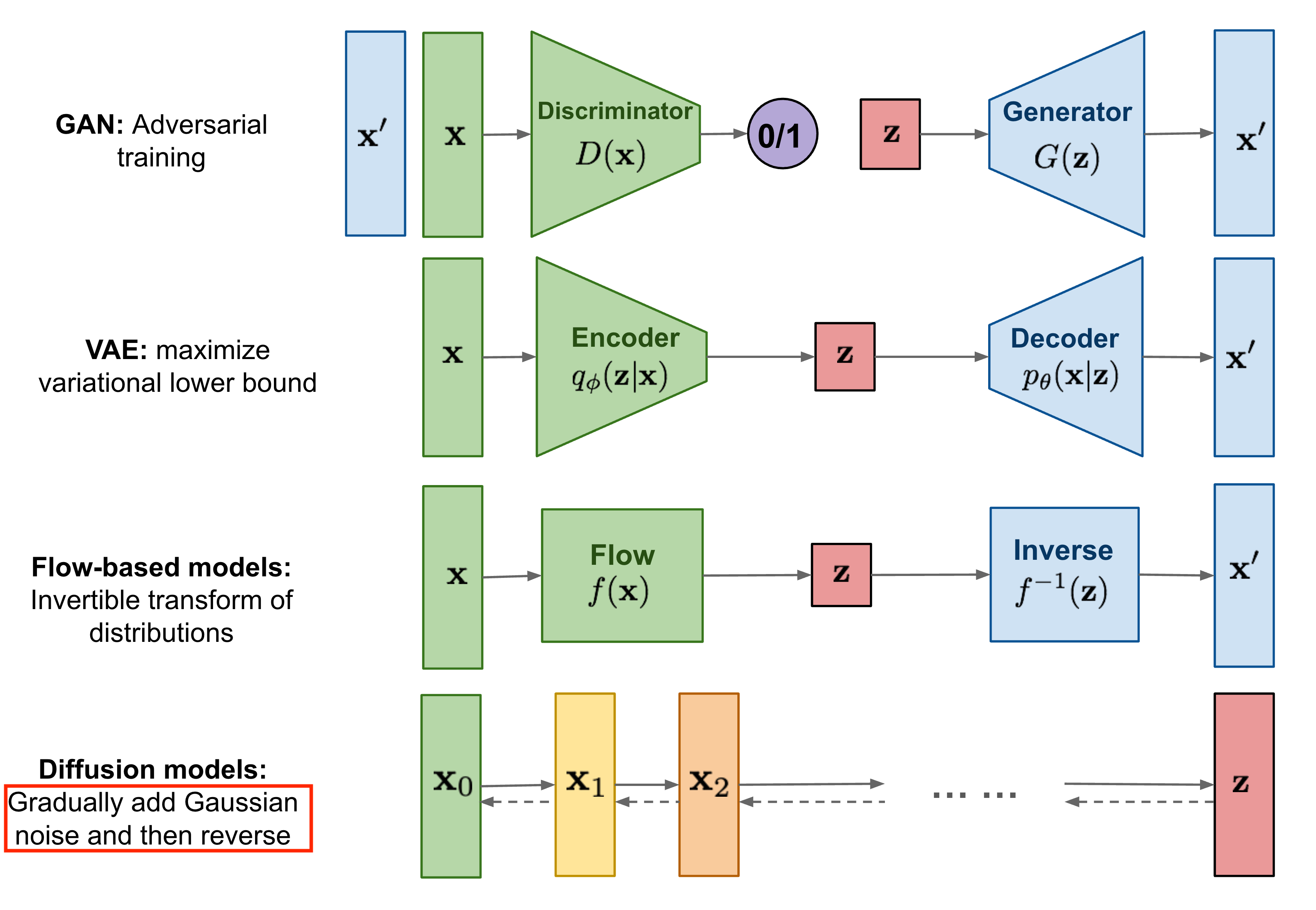

Generative models

https://lilianweng.github.io/posts/2021-07-11-diffusion-models/

• Diffusion models can have more mathematical explanations (stochastic differential process).

Diffusion model (嘴砲)

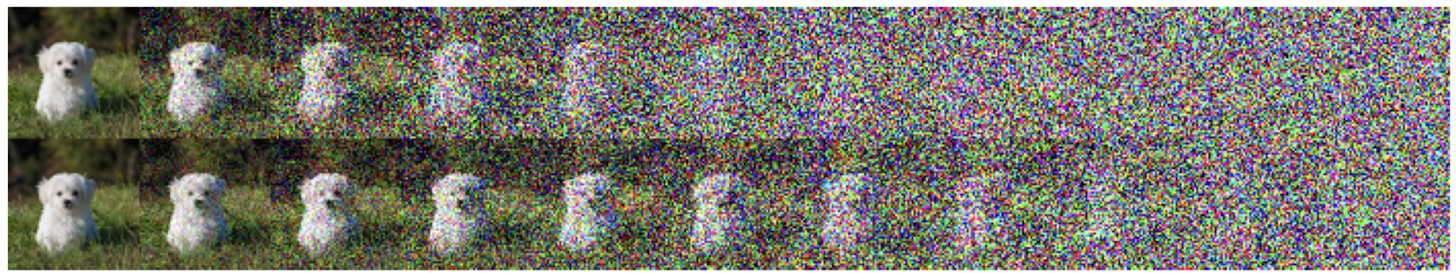

• Fix T\in \mathbb N large.
• We add independent normal distributions (noise) step by step.
• We call this the forward process.
• X_T is basically a noise.
• We can obtain an approximation of q(x_0) by recovering q(x_{t-1}\vert x_t).

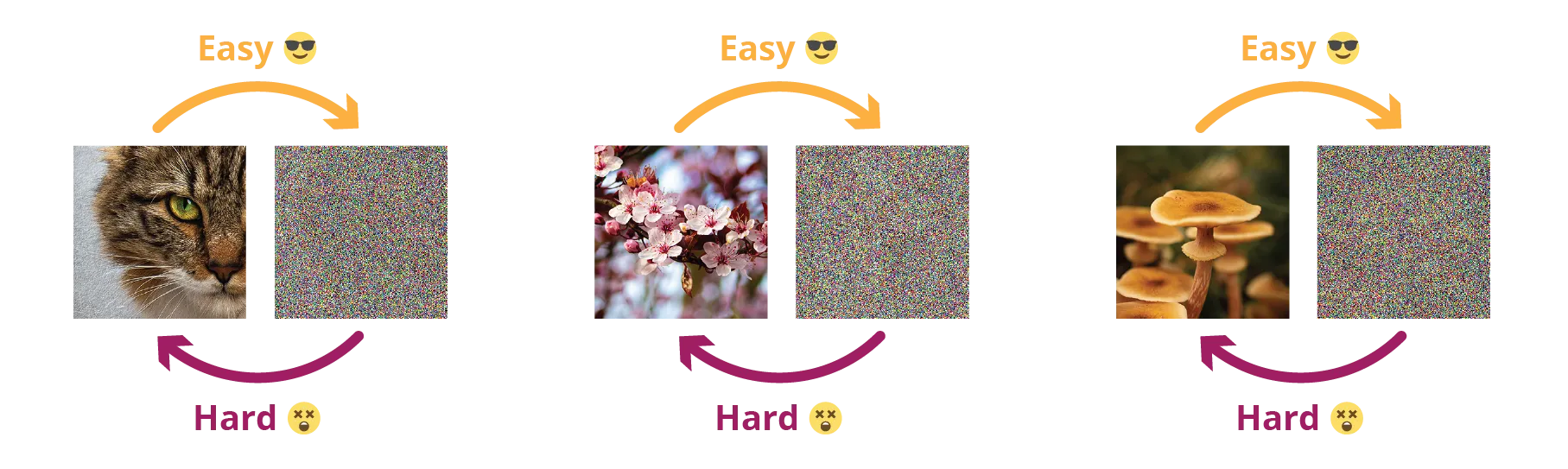

• We will not recover q(x_0) directly from x_T because this is too difficult.
• How to define the forward process of the diffusion model?

Define the forward process by adding independent noise

• Fix the follows:
  • T\in \mathbb N large;
  • \lbrace \alpha_1,\cdots,\alpha_T \rbrace\subset (0.001,0.999);
  • \beta_t = 1-\alpha_t (the intensity of noise added).
• Let X_0,\varepsilon_1,\cdots, \varepsilon_T be independent random variables with \begin{aligned} X_0 \sim q(x_0), \quad \varepsilon_t \sim \mathcal{N}(\mathbf{0},\mathbf{I}). \end{aligned}
• For t=1,\cdots,T, let \begin{aligned} X_{t}= \sqrt{\alpha_t} X_{t-1} + \sqrt{\beta_t} \varepsilon_t. \end{aligned}
• Note that in this definition, \begin{aligned} q(x_{t}\vert x_{t-1:0}) = q(x_t \vert x_{t-1}). \end{aligned} Hence, \lbrace X_0,X_1,\cdots,X_T\rbrace is a Markov chain.
• We often use an equivalent definition to define the forward process.

Forward process

• We define the forward process as a Markov chain X_0,\cdots,X_T with
  • the initial density q(x_0), and
  • the transition density \begin{aligned} q(x_t\vert x_{t-1}) = \mathcal{N} (\sqrt{\alpha_t}x_{t-1},\beta_t \mathbf{I}). \end{aligned}
• The joint density of (X_T, X_{T-1},\cdots, X_1, X_0) for the forward process (or {\color{red}{\text{we say under }q}}) is \begin{aligned} q(x_{T:0}) = q(x_T\vert x_{T-1}) \cdot q(x_{T-1}\vert x_{T-2}) \cdots q(x_{1}\vert x_0) \cdot q(x_0). \end{aligned}
• Let \varepsilon_t such that \begin{aligned} X_t = \sqrt{ \alpha_t } X_{t-1} + \sqrt{\beta_t} \varepsilon_t. \end{aligned} Then \underline{\varepsilon_t\sim \mathcal{N}(\mathbf{0},\mathbf{I})} and \underline{X_0,\varepsilon_1,\varepsilon_2,\cdots,\varepsilon_t\text{ are independent under }q.}
• Under q, X_t can be written as \begin{aligned} X_t = \sqrt{\overline{\alpha}_t }X_0 + \sqrt{1-\overline{\alpha}_t} \overline{\varepsilon}_t \end{aligned} with \underline{\overline{\varepsilon}_t\perp X_0}, \underline{\overline{\varepsilon}_t\sim \mathcal{N}(\mathbf{0},\mathbf{I})}, and \overline{\alpha}_t = \alpha_t\cdots \alpha_1.
• Under q, X_T converge to \mathcal{N}(\mathbf{0},\mathbf{I}) for T large.

Reverse the forward process

• Recall that our goal is to construct p_{\theta}(x_0) such that \begin{aligned} p_{\theta}(x_0)\approx q(x_0). \end{aligned}

• The simplest way to construct p_{\theta}(x_0) is as follows:

  • Take p_{\theta}(x_T)\sim\mathcal{N}(\mathbf{0},\mathbf{I}), and
  • learn p_{\theta}(x_t\vert x_{t-1}) such that \begin{aligned} p_{\theta}(x_{t-1}\vert x_{t}) \approx q(x_{t-1}\vert x_{t}). \end{aligned}

• Although we don’t know what distribution q(x_{t-1}\vert x_{t}) is, we can approximate it with a normal.

  Why?

Why q(x_{t-1}\vert x_t)\approx normal? \quad Method 1

Discretization of a diffusion process

• We first see a differential equation \begin{aligned} x_t=\int_0^t \mu(x_s,s)\mathrm{d}s \qquad \text{or}\qquad \mathrm{d}x_t = \mu(x_t,t) \mathrm{d}t. \end{aligned}
• This means that for any fixed t and for \Delta t>0 small, \begin{aligned} x_{t+\Delta t} \approx x_t + \mu(x_t,t) \Delta t. \end{aligned}

---

• Now consider a diffusion process \begin{aligned} X_t = \int_0^t \mu(X_s,s)\mathrm{d}s + \int_0^t \sigma(s) \mathrm{d}B_s \qquad\text{or}\qquad \mathrm{d} X_t = \mu(X_t,t) \mathrm{d}t + \sigma(t) \mathrm{d}B_t. \end{aligned} \tag{1}
• Similarly, for any fixed t and for \Delta t>0 small, \begin{aligned} X_{t+\Delta t} \approx \underbrace{X_t + \mu(X_t,t) \Delta t + \sigma(t) (\underbrace{B_{t+\Delta t}- B_t}_{\mathcal{N}(0,\Delta t)})}_{\mathcal{N}\bigl( X_t + \mu(X_t,t) \Delta t \,\, , \,\,\, \sigma(t)^2 \Delta t \bigr)}. \end{aligned} Note that B_{t+\Delta t}-B_t, (X_s)_{s\in [0,t]} are independent.
• Discretization of (1) \implies Add an independent normal distribution (noise) step by step.

Why q(x_{t-1}\vert x_t)\approx normal? \quad Method 1

• The process X_0,X_1,\cdots,X_T, under q, is a discretization of some process (\widetilde{X}_t)_{t\in [0,1]} which satisfies the SDE \begin{aligned} \mathrm{d}\widetilde{X}_t = \mu(\widetilde{X}_t,t) \mathrm{d}t + \sigma(t) \mathrm{d}B_t. \end{aligned}

• Consider the reverse-time process of (\overline{X}_t)_{t\in [0,1]}: \begin{aligned} \overline{X}_t := \widetilde{X}_{1-t}, \quad t \in [0,1]. \end{aligned}

• By Anderson (1982), (\overline{X}_t)_{t\in [0,1]} satisfies the SDE, for some \overline{\mu}, \begin{aligned} d\overline{X}_t = \overline{\mu}(\overline{X}_t,t) \mathrm{d}t + \overline{\sigma}(t) \mathrm{d}\overline{B}_t, \end{aligned} \tag{2} where \overline{\sigma}(t)=\sigma(1-t).
• The process X_T,X_{T-1},\cdots,X_1,X_0, under q, is a discretization of (\overline{X}_t)_{t\in [0,1]}.
• By (2), q(x_{t-1} \vert x_t) can be approximated by Gaussian distribution.

Why q(x_{t-1}\vert x_t)\approx normal? \quad Method 2

By Bayes’ theorem and Taylor’s theorem, \begin{aligned} q(x_{t-1}\vert x_t) &= \frac{q(x_t\vert x_{t-1})q(x_{t-1})}{q(x_{t})} \cr &= \mathcal{N}(x_t; \sqrt{\alpha_t}x_{t-1},\beta_t \mathbf{I}) \cdot \exp\bigl( \log q(x_{t-1}) - \log q(x_t) \bigr) \cr &\approx c \cdot \exp\Biggl\lbrace \underbrace{-\frac{\alpha_t}{2\beta_t} \Bigl( x_{t-1} - \frac{1}{\sqrt{\alpha_t}} x_t \Bigr)^2 + (x_{t-1}-x_t) \nabla_{x_t}\log q(x_t) }_{\text{A quadratic polynomial of }x_{t-1}\text{ with negative leading coefficient}} \Biggr\rbrace. \end{aligned}

---

Hence, q(x_{t-1} \vert x_t) can be approximated by Gaussian distribution.

Backward Process

• We define the backward process as a Markov chain X_T, X_{T-1},\cdots, X_0 with
  • the initial distribution p_{\theta}(x_T) = \mathcal{N}(\mathbf{0},\mathbf{I}) and
  • the transition density \begin{aligned} p_{\theta}(x_{t-1}\vert x_t) = {\color{red}{\mathcal{N}\bigl(x_{t-1}; \mu_{\theta}(x_t,t),\Sigma_{\theta}(x_t,t)\bigr)}}, \end{aligned} \color{blue}{\text{where }\mu_{\theta},\Sigma_{\theta} \text{ is what we need to give.}}
• The joint density of (X_0,X_1,\cdots,X_{T-1},X_T), for the backward process (or {\color{red}{\text{we say under }p_{\theta}}}), is \begin{aligned} p_{\theta}(x_{0:T}) = p_{\theta}(x_0 \vert x_1) \cdot p_{\theta}(x_1 \vert x_2) \cdots p_{\theta}(x_{T-1}\vert x_T) \cdot p_{\theta}(x_T). \end{aligned}
• The simple idea is to learn p_{\theta}(x_{t-1}\vert x_t)\approx q(x_{t-1}\vert x_t).
• In DDPM, we are actually going to learn \begin{aligned} \color{red}{p_{\theta}(x_{t-1}\vert x_t)\approx q(x_{t-1}\vert x_t,x_0).} \end{aligned} q(x_{t-1}\vert x_t,x_0) is normal since \begin{aligned} q(x_{t-1}\vert x_t,x_0) = \frac{\overbrace{q(x_{t-1}\vert x_0) q(x_t\vert x_{t-1})}^{\exp\text{ of a quadratic polynomial of } x_{t-1} \text{ with negative leading coefficient}}}{\underbrace{q(x_t\vert x_0)}_{\text{constant}}}. \end{aligned}

To determine μ_θ,Σ_θ

Table of Contents

• Denoising Diffusion Probabilistic Models (DDPM)

• To determine μ_θ,Σ_θ

• Training and Sampling

• Appendix

Remark. \begin{aligned} p_{\theta}(x_{t-1}\vert x_t) = {\color{red}{\mathcal{N}\bigl(x_{t-1}; \mu_{\theta}(x_t,t),\Sigma_{\theta}(x_t,t)\bigr)}}. \end{aligned}

Goal

• The main purpose of the diffusion model is to learn a distribution p_{\theta}(x_0) such that p_{\theta}(x_0)\approx q(x_0).

• One way is to minimize D_{\mathtt{KL}}(q(x_0) \,\Vert\, p_{\theta}(x_0)).

• Our goal becomes to find \begin{aligned} \mu_{\theta}^*, \Sigma_{\theta}^* &= \arg \min_{\mu_{\theta},\Sigma_{\theta}} D_{\mathtt{KL}} \bigl( q(x_0) \big\Vert p_{\theta}(x_0) \bigr) \cr &= \arg \min_{\mu_\theta,\Sigma_\theta} \biggl( -\int q(x_0) \log \Bigl( \frac{p_{\theta}(x_0)}{q(x_0)} \Bigr) \mathrm{d}x_0 \biggr) \cr &= \arg \min_{\mu_{\theta},\Sigma_{\theta}} \biggl( \underbrace{-\int q(x_0) \log p_{\theta}(x_0) \mathrm{d}x_0}_{\color{blue}{\mathbb E_{X_0\sim q(x_0)}[-\log p_{\theta}(X_0)]}} \biggr). \end{aligned}

• By the evidence lower bound(ELBO), \begin{aligned} -\log p_{\theta}(x_0) \leq \mathbb E_{X_{1:T}\sim q(x_{1:T} \vert x_0)} \Bigl[ -\log \frac{p_{\theta}(x_0,X_{1:T})}{q(X_{1:T}\vert x_0)} \Bigr]. \end{aligned} Hence, \begin{aligned} {\color{blue}{\mathbb E_{X_0\sim q(x_0)}[-\log p_{\theta}(X_0)]}} \leq \mathbb E_{X_{0:T}\sim q(x_{0:T})} \Bigl[ -\log \frac{p_{\theta}(X_{0:T})}{q(X_{1:T}\vert X_0)} \Bigr]:= L. \end{aligned}

• Our goal becomes to minimize L.

• Note that \begin{aligned} L &= \mathbb E_{X_0\sim q(x_0)} \biggl[ D_{\mathtt{KL}} \Bigl( \underline{q(x_T \vert x_0)} \big\Vert \underline{p(x_T)} \Bigr) \Big\vert_{x_0=X_0} \biggr] \cr & \qquad + \sum_{t=2}^T \underbrace{\mathbb E_{X_0,X_t\sim q(x_0,x_{t})} \biggl[ D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr)\Big \vert_{x_0,x_t=X_0,X_t} \biggr]}_{L_{t-1}} \cr & \qquad \qquad + \underbrace{\mathbb E_{X_0,X_1\sim q(x_0,x_1)} \biggl[ -\log {\color{blue}{p_{\theta}(x_0 \vert x_1)}} \Big\vert_{x_0,x_1=X_0,X_1} \biggr]}_{L_0}. \end{aligned}

• To minimize L \iff To minimize L_{t-1},t=1,\cdots,T.

• We focus on t\geq 2.

• By Bayes’ rule and after a long calculation, \begin{aligned} q(x_{t-1} \vert x_t,x_0) = \mathcal{N}\bigl( x_{t-1}; \mu_{t}(x_t,x_0),\Sigma_t \bigr), \quad t = 2,\cdots,T, \end{aligned} where \begin{aligned} \mu_{t}(x_t,x_0) = \frac{\sqrt{\overline{\alpha}_{t-1}}\beta_t}{1-\overline{\alpha}_t}x_0 + \frac{\sqrt{\alpha_t}(1-\overline{\alpha}_t)}{1-\overline{\alpha}_t}x_t , \quad \Sigma_t = \frac{1-\overline{\alpha}_{t-1}}{1-\overline{\alpha}_t}\beta_t. \end{aligned}

To minimize L_{t-1}

Recall that L_{t-1}=\mathbb E_{X_0,X_t\sim q(x_0,x_{t})} \biggl[ D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}}\big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} }\Bigr)\Big \vert_{x_0,x_t=X_0,X_t} \biggr].

For each t=2,\cdots, T, our goal is to minimize \begin{aligned} D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr), \end{aligned} where \begin{aligned} {\color{red}{q(x_{t-1} \vert x_t,x_0)}} &= \mathcal{N}\bigl( x_{t-1}; \mu_{t}(x_t,x_0),\Sigma_t \bigr) ,\cr {\color{blue}{p_{\theta}(x_{t-1}\vert x_t)}} &= \mathcal{N}(x_{t-1};{\color{green}{\mu_{\theta}(x_t,t),\Sigma_{\theta}(x_t,t)}}) \end{aligned}

with \begin{aligned} \mu_{t}(x_t,x_0) &= \frac{\sqrt{\overline{\alpha}_{t-1}}\beta_t}{1-\overline{\alpha}_t}x_0 + \frac{\sqrt{\alpha_t}(1-\overline{\alpha}_{t-1})}{1-\overline{\alpha}_t}x_t , \cr \Sigma_t &= \frac{1-\overline{\alpha}_{t-1}}{1-\overline{\alpha}_t}\beta_t \mathbf{I}. \end{aligned}

---

• Recall that if q\sim \mathcal{N}(\mu_1,\Sigma_1), p\sim \mathcal{N}(\mu_2,\Sigma_2) in \mathbb R^n, then \begin{aligned} D_{\mathtt{KL}}(q\Vert p) = \frac{1}{2} \Bigl( \log\frac{\left\lvert \Sigma_2 \right\rvert}{\left\lvert \Sigma_1 \right\rvert} - n + \operatorname{tr}(\Sigma_2^{-1}\Sigma_1) + (\mu_2-\mu_1)^T \Sigma_2^{-1} (\mu_2-\mu_1) \Bigr). \end{aligned}
• \color{red}{\textbf{We choose}} \begin{aligned} {\color{green}{\Sigma_{\theta}(x,t)}} = \Sigma_t &= \frac{1-\overline{\alpha}_{t-1}}{1-\overline{\alpha}_t}\beta_t \mathbf{I} := \sigma_t^2 \mathbf{I}. \end{aligned} Then \begin{aligned} D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr) = \frac{1}{2\sigma_t^2} \left\lVert \mu_t(x_t,x_0) - \mu_{\theta}(x_t,t) \right\rVert^2 . \end{aligned}

To determine \mu_{\theta}(x_t,t)

• Want: \mu_{\theta}(x_t,t)\approx \mu_t(x_t,x_0).

• Try to set \mu_{\theta}(x_t,t)=\mu_t(x_t,\widehat{x}_0), where \begin{aligned} \widehat{x}_0=\widehat{x}_0(x_t,t). \end{aligned}

• Write \begin{aligned} X_t = \sqrt{\overline{\alpha}_t} X_0 + \sqrt{1-\overline{\alpha}_t} \overline{\varepsilon}_t. \end{aligned} \tag{3} Then under q, \overline{\varepsilon}_t\perp X_0, \overline{\varepsilon}_t\sim N(\mathbf{0},\mathbf{I}).

• For each t, we let \color{blue}{\widehat{x}_0=\widehat{x}_0(x_t,t)} s.t. \begin{aligned} x_t = \sqrt{\overline{\alpha}_t} {\color{blue}{\widehat{x}_0}} + \sqrt{1-\overline{\alpha}_t} {\color{red}{\varepsilon_{\theta}(x_t,t)}}, \end{aligned} where {\color{red}{\varepsilon_{\theta}}} is our model to predict the {\color{red}{\textbf{real noise }\overline{\varepsilon}_t}} by giving x_t,t.

• We replace x_0 by (3) and we get \begin{aligned} \mu_t(x_t,x_0) &= \mu_t \Bigl( x_t, \frac{1}{\sqrt{\overline{\alpha}_t}}\bigl( x_t-\sqrt{1-\overline{\alpha}_t} \overline{\varepsilon}_t \bigr) \Bigr) \cr &=\frac{1}{\sqrt{\alpha_t}} \Bigl( x_t - \frac{\beta_t}{\sqrt{1-\overline{\alpha}_t}} {\color{red}{\overline{\varepsilon}_t}} \Bigr). \end{aligned}

• \color{red}{\textbf{We reparametrise}} \mu_{\theta} by \begin{aligned} {\color{green}{\mu_{\theta} (x,t)}} = \mu_t(x,\widehat{x}_0(x,t)) = \frac{1}{\sqrt{\alpha_t}} \Bigl( x - \frac{\beta_t}{\sqrt{1-\overline{\alpha}_t}} {\color{red}{\varepsilon_{\theta} (x,t) }} \Bigr). \end{aligned}

  • Given t,x_t, \begin{aligned} \text{predict }\overline{\varepsilon}_t \iff {\color{blue}{\text{predict } X_0}}. \end{aligned}

• Hence, \begin{aligned} D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr) = \frac{\beta_t^2}{2\sigma_t^2 \alpha_t (1-\overline{\alpha}_t)} \left\lVert \overline{\varepsilon}_t - \varepsilon_{\theta}(x_t,t) \right\rVert^2. \end{aligned}


Training and Sampling

Table of Contents

• Denoising Diffusion Probabilistic Models (DDPM)

• To determine μ_θ,Σ_θ

• Training and Sampling

• Appendix

Remark. We will minimize \mathbb E_{X\sim q(x)}[f_{\theta}(X)] by

• repeat until converge:

  • sampling x\sim q(x) and then
  • minimizing f_{\theta}(x) by taking gradient descent on \theta.

Remark. We may sample (x,y)\sim q(x,y) by

• sampling x\sim q(x) and then
• sampling y\sim q(y\vert x).

Training

Minimize each L_{t-1}=\mathbb E_{X_0,X_t\sim q(x_0,x_{t})} \biggl[ D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr)\Big \vert_{x_0,x_t=X_0,X_t} \biggr] by the follows:

• Sample x_0\sim q(x_0);
• Sample x_t\sim q(x_t\vert x_0) by x_t = \sqrt{\overline{\alpha}_t} x_0 + \sqrt{1-\overline{\alpha}_t} \overline{\varepsilon}_t, where \overline{\varepsilon}_t\sim \mathcal{N}(\mathbf{0},\mathbf{I});
• Minimize D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}}\big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr) by minimizing \left\lVert \overline{\varepsilon}_t - \varepsilon_{\theta}(x_t,t) \right\rVert^2.

\begin{algorithm} \caption{Training} \begin{algorithmic} \Repeat \State $t\sim \text{Uniform}(\lbrace 1,\cdots,T \rbrace)$ \Comment{Sample random step} \State $x_0\sim q(x_0)$ \Comment{Sample random initial data} \State $\varepsilon\sim \mathcal{N}(\mathbf{0},\mathbf{I})$ \Comment{Sample random noise} \State $x_t = \sqrt{\overline{\alpha}_t}x_0 + \sqrt{1-\overline{\alpha}_t}\varepsilon$ \Comment{Rand. step of rand. trajectory} \State Take gradient descent step on $\left\lVert \varepsilon - \varepsilon_{\theta}(x_t,t) \right\rVert^2$ \Comment{Optimization} \Until{converged} \end{algorithmic} \end{algorithm}

Sampling

• Recall that p_{\theta}(x_{t-1}\vert x_t)\sim \mathcal{N}(\mu_{\theta}(x_t,t),\sigma_t \mathbf{I}), where \begin{aligned} \mu_{\theta} (x,t) = \frac{1}{\sqrt{\alpha_t}} \Bigl( x - \frac{\beta_t}{\sqrt{1-\overline{\alpha}_t}} {\color{red}{\varepsilon_{\theta} (x,t) }} \Bigr). \end{aligned}

• We sample x_{t-1} from p_{\theta} by the follows:
  • Given x_t;
  • Sample z \sim \mathcal{N}\bigl( \mathbf{0}, \mathbf{I} \bigr);
  • Sample x_{t-1} by \begin{aligned} x_{t-1} = \mu_{\theta} (x_t, t) + \sigma_t z. \end{aligned}

\begin{algorithm} \caption{Sampling} \begin{algorithmic} \State $x_T\sim \mathcal{N}(\mathbf{0},\mathbf{I})$ \Comment{Initial isotropic gaussian noise sampling} \For{$t=T,\cdots,1$} \State $z\sim \mathcal{N}(\mathbf{0},\mathbf{I})$ if $t>1,$ else $z=\mathbf{0}$ \Comment{Sample random noise (if not last step)} \State $\widehat{\varepsilon} = \varepsilon_{\theta}(x_t,t)$ \Comment{Estimated noise in current noisy data} \State $\widehat{\mu} = \frac{1}{\sqrt{\alpha_t}} \Big(x_t-\frac{\beta_t}{\sqrt{1-\overline{\alpha}_t}}\widehat{\varepsilon}\Big)$ \Comment{Mean for previous step sampling} \State $x_{t-1}=\widehat{\mu}+\sigma_t z$ \Comment{Previous step sampling} \EndFor \Return $x_0$ \end{algorithmic} \end{algorithm}

Sampling

We can write Algorithm 2 shorter as Algorithm 3.

\begin{algorithm} \caption{Sampling} \begin{algorithmic} \State $x_T\sim \mathcal{N}(\mathbf{0},\mathbf{I})$ \For{$t=T,\cdots,1$} \State $z\sim \mathcal{N}(\mathbf{0},\mathbf{I})$ if $t>1,$ else $z=\mathbf{0}$ \State $x_{t-1}=\frac{1}{\sqrt{\alpha_t}}\Big(x_t-\frac{1-\alpha_t}{\sqrt{1-\overline{\alpha}_t}}\varepsilon_{\theta}(x_t,t)\Big)+\sigma_t z$ \EndFor \Return $x_0$ \end{algorithmic} \end{algorithm}

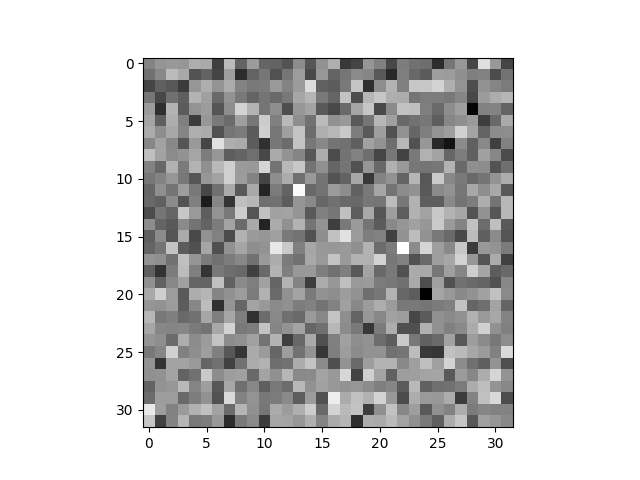

Sampling

https://towardsdatascience.com/understanding-diffusion-probabilistic-models-dpms-1940329d6048

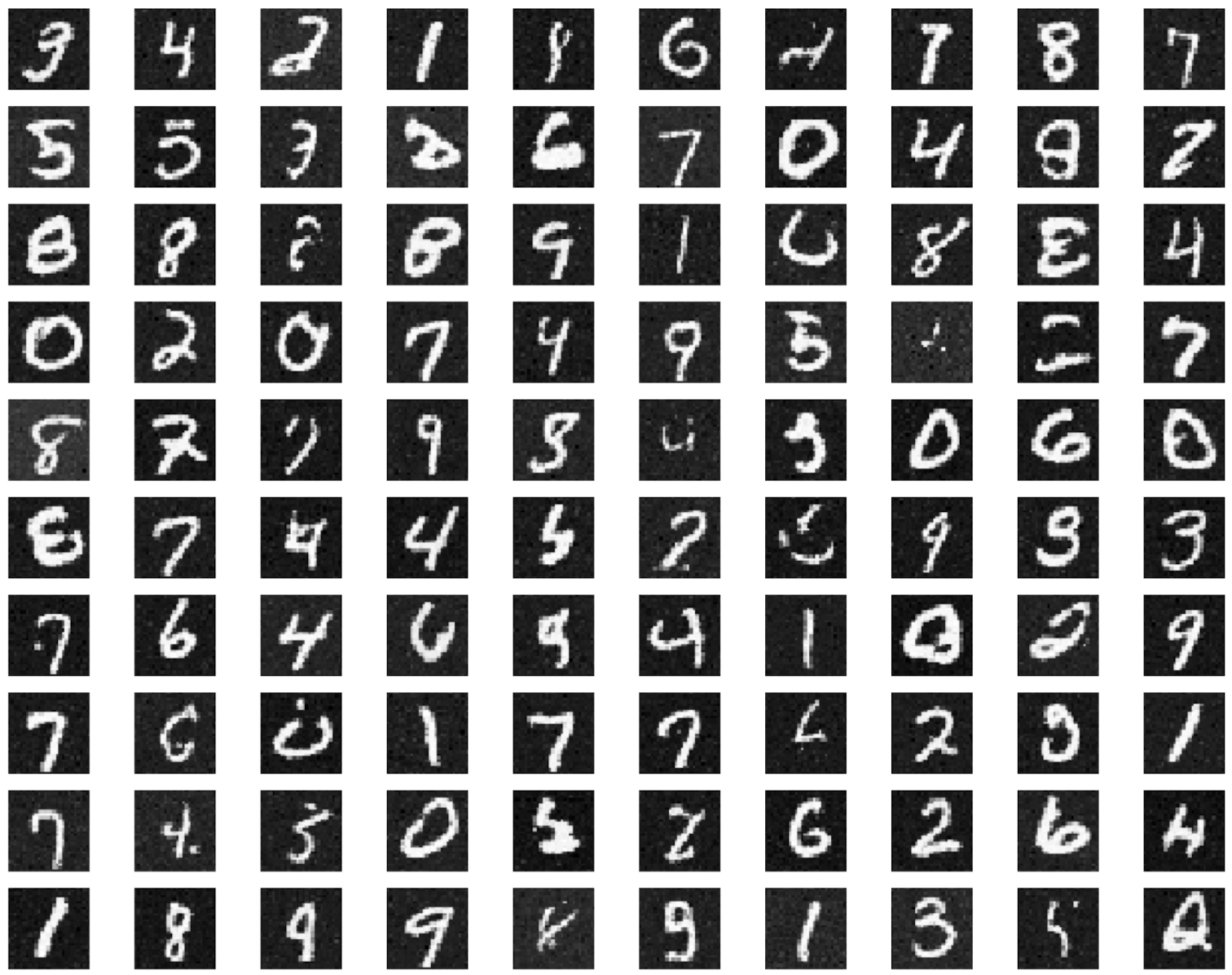

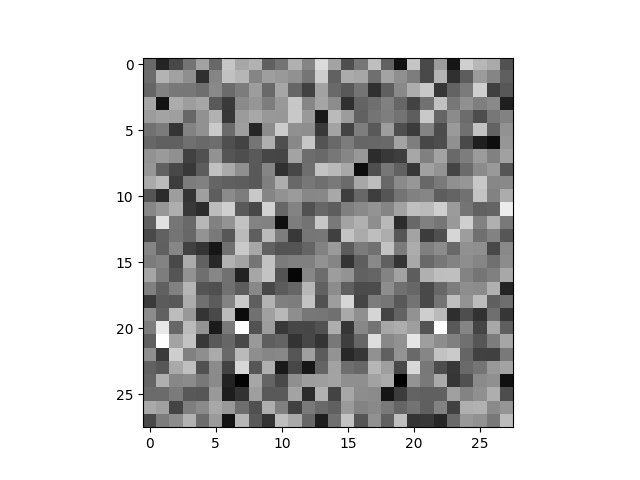

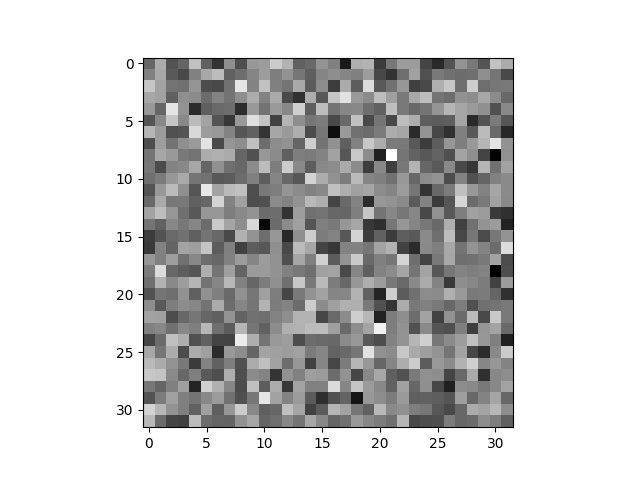

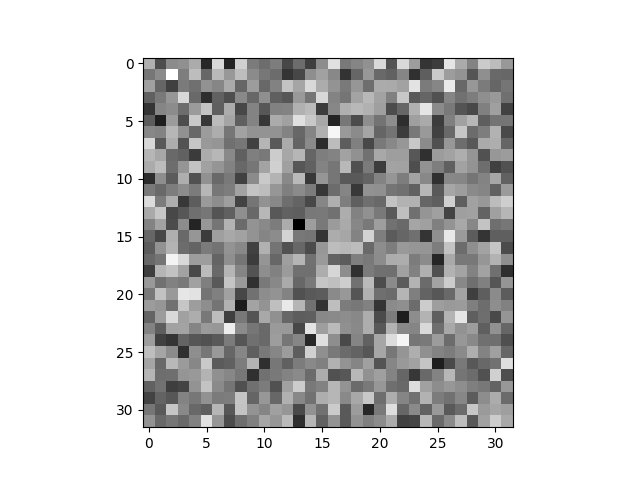

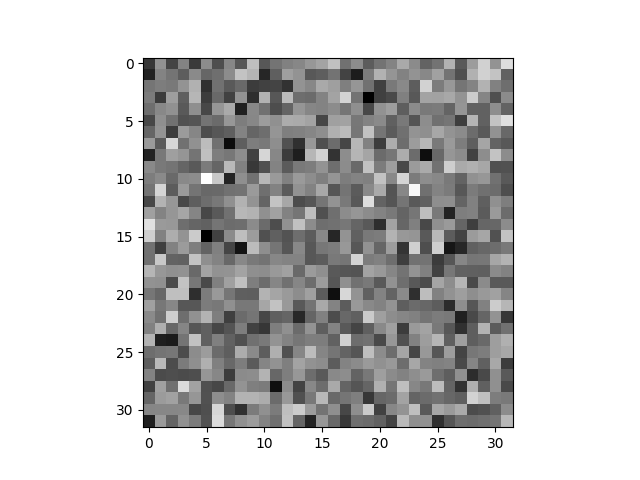

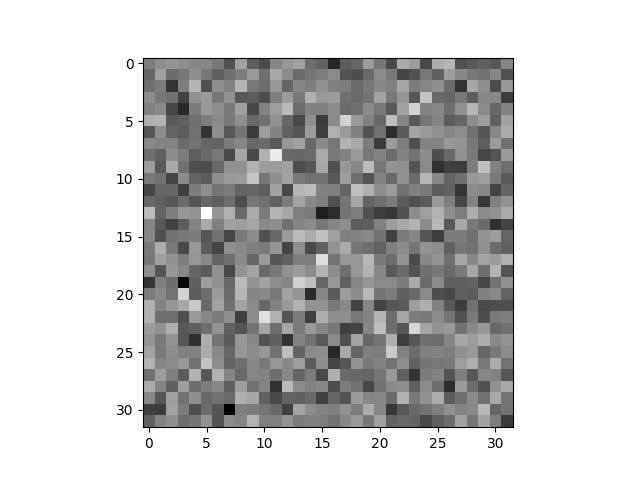

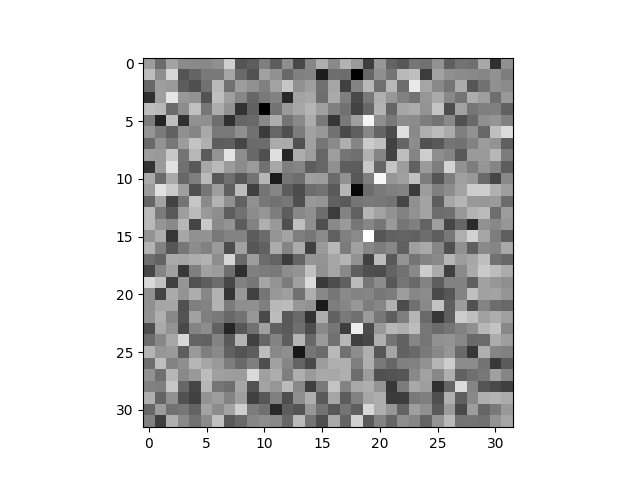

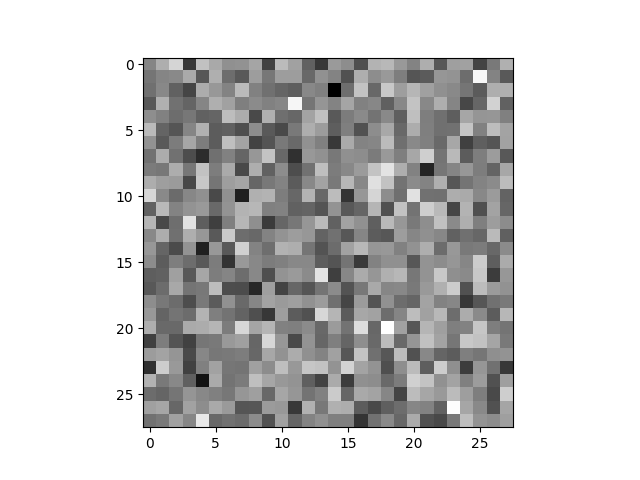

Sampling mnist

• mnist

• fashion_mnist

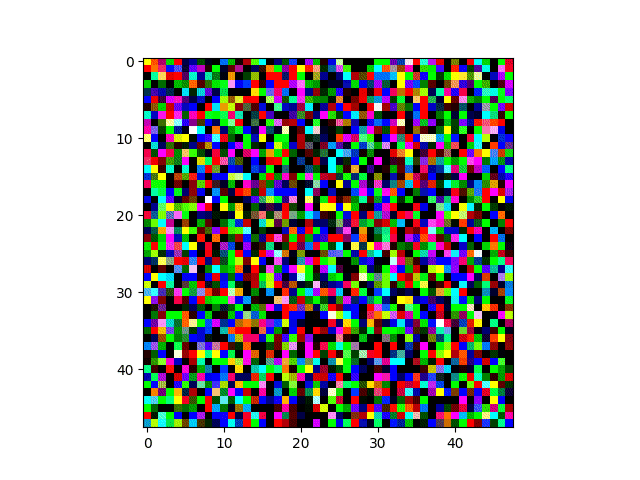

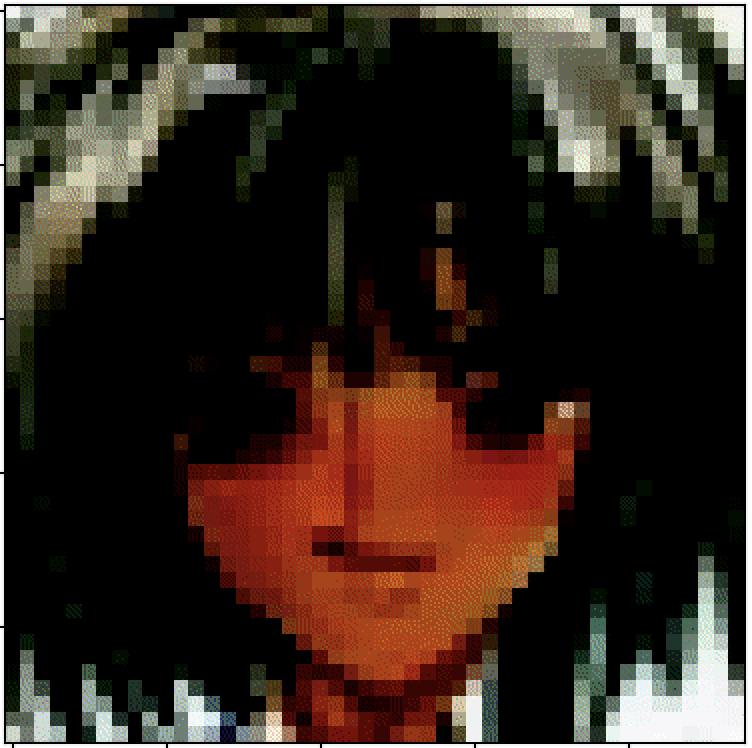

Sampling anime face 1

Data (from Anime Face Dataset)

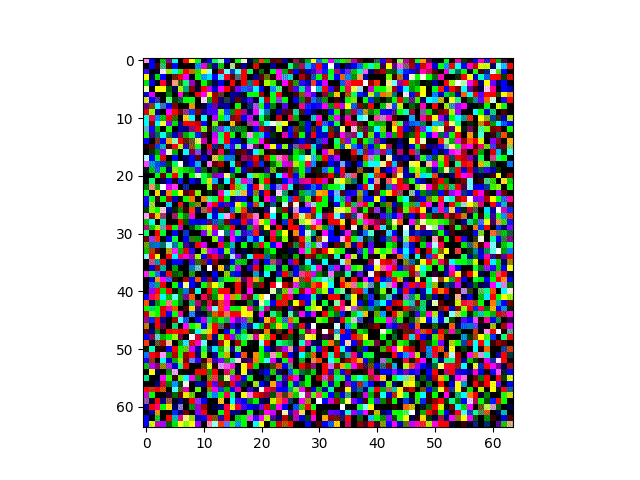

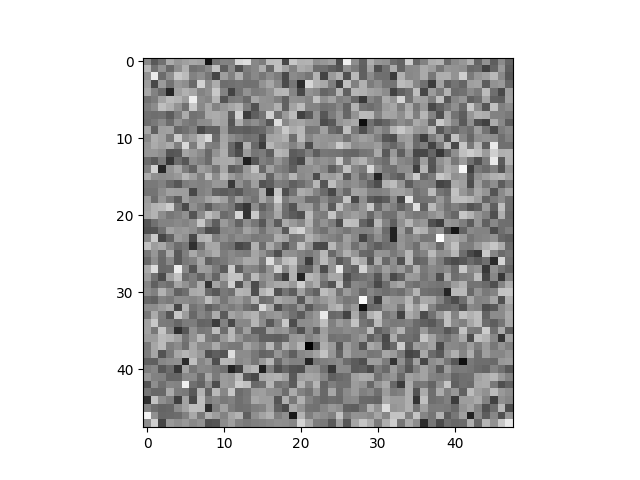

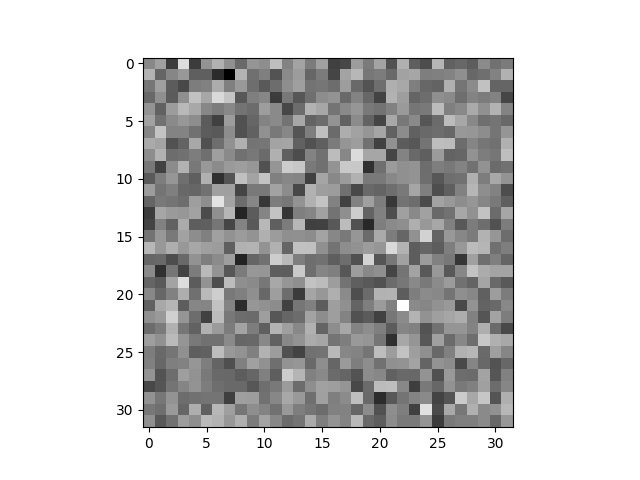

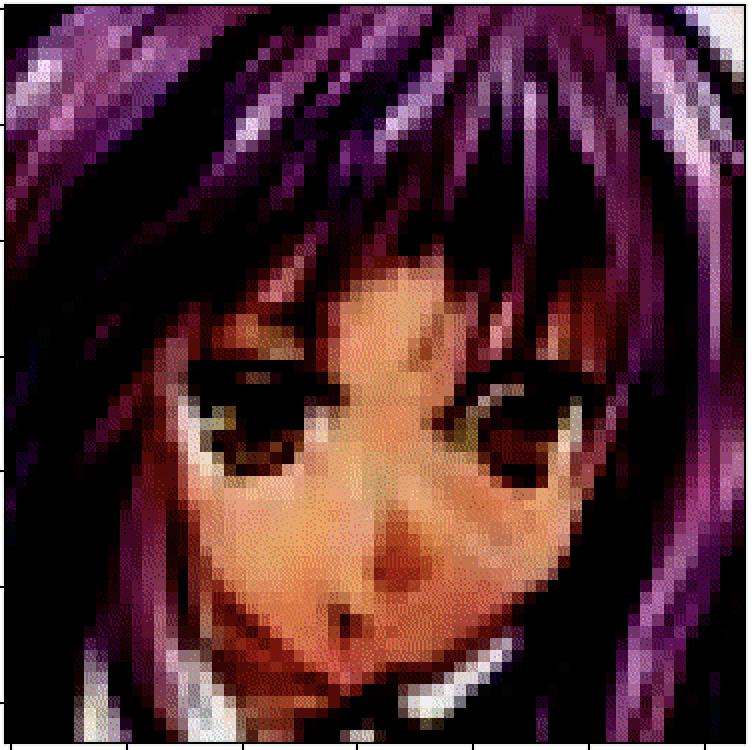

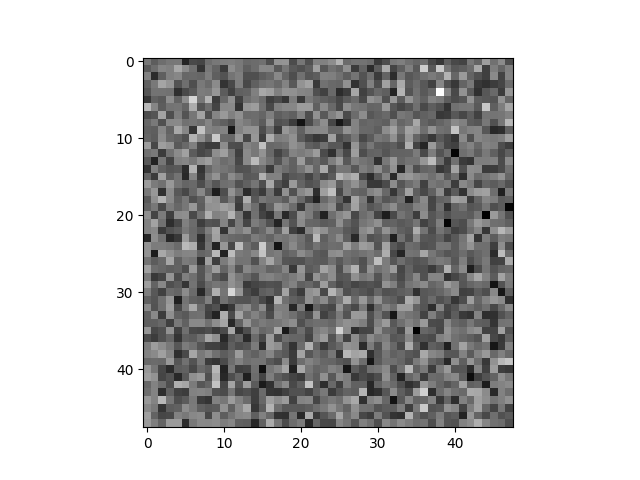

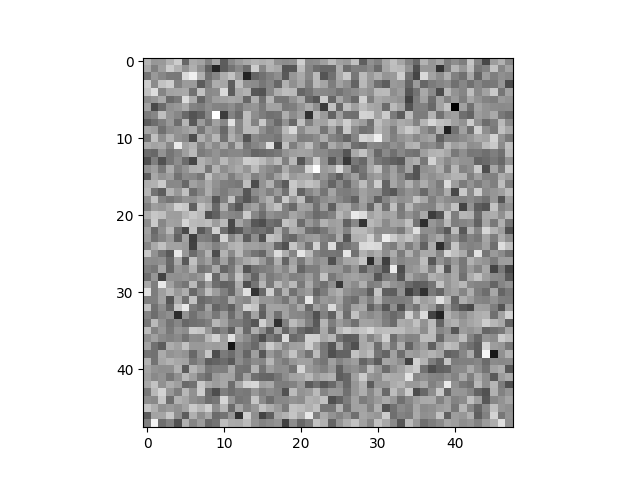

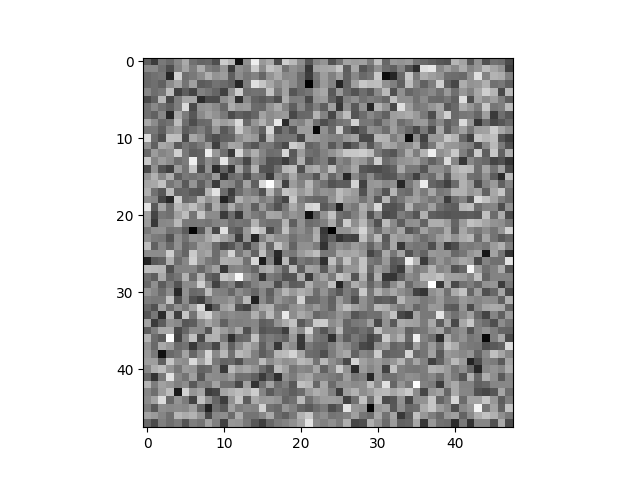

Sample, reverse process and estimate x_0

Sampling anime face 2

Data

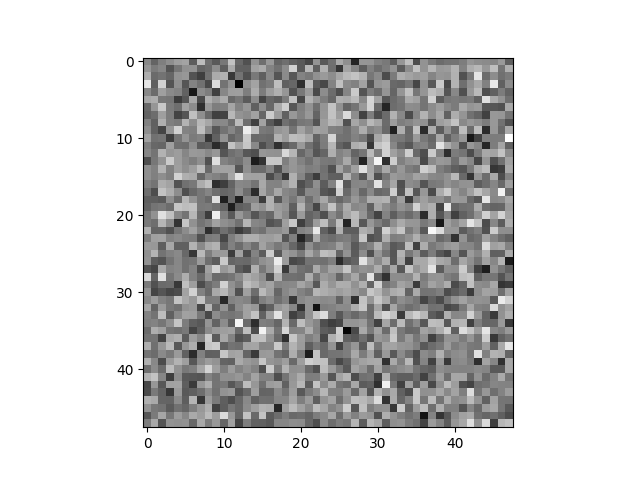

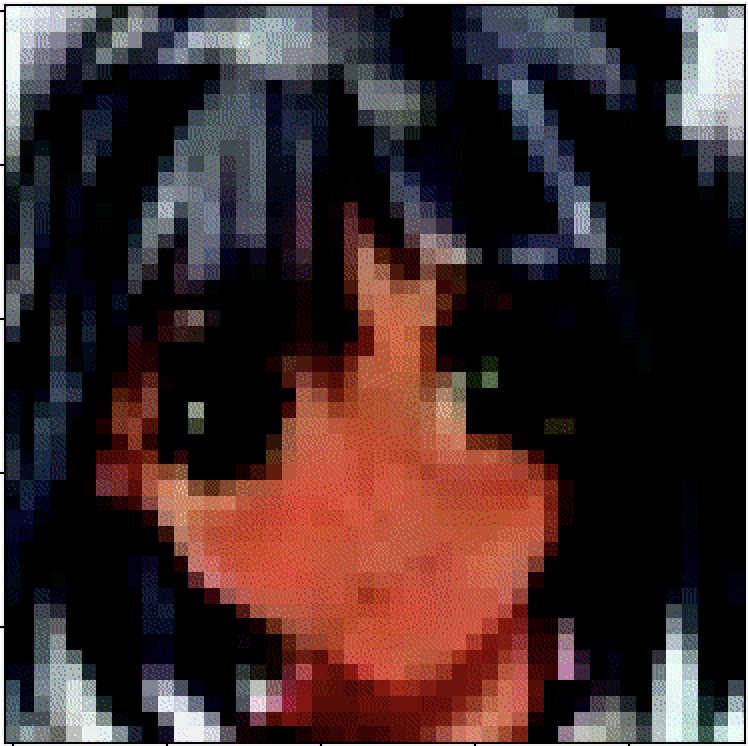

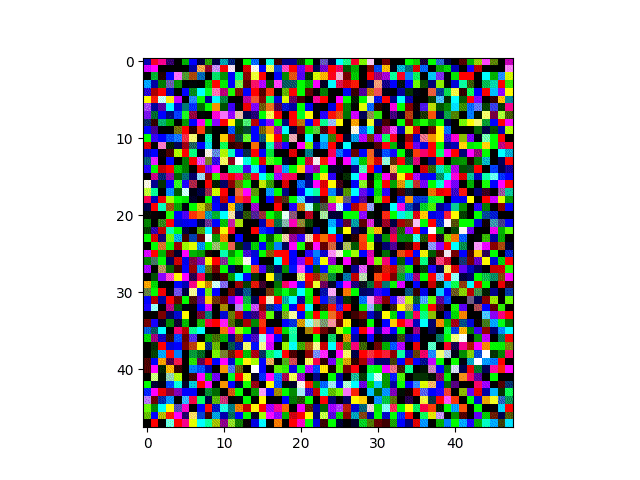

Sample, reverse process and estimate x_0

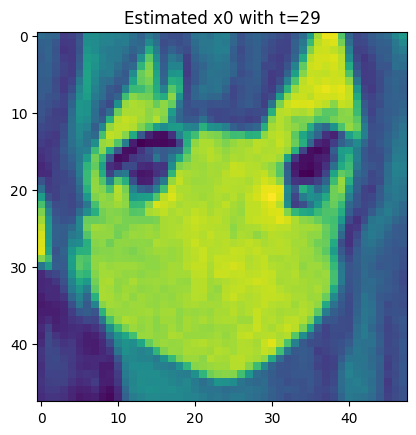

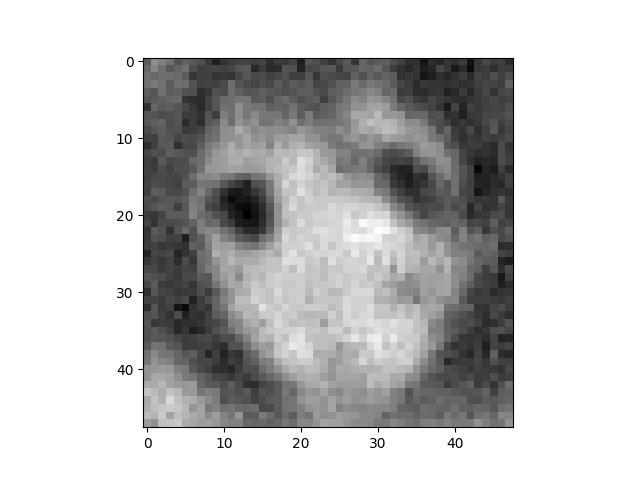

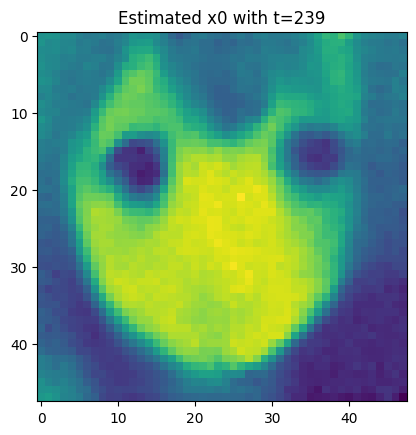

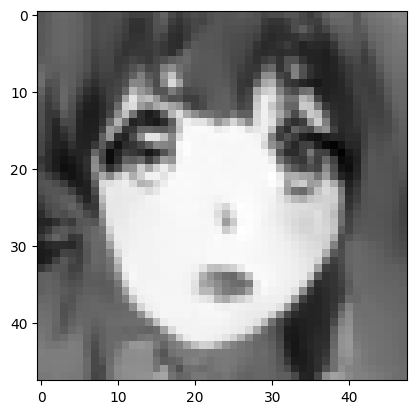

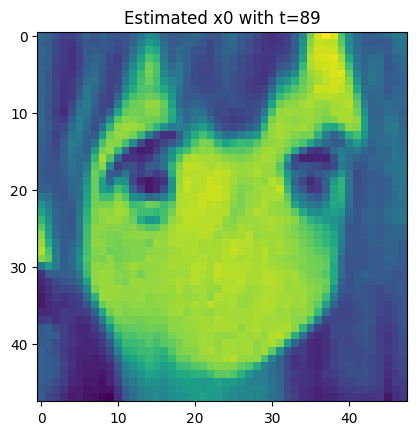

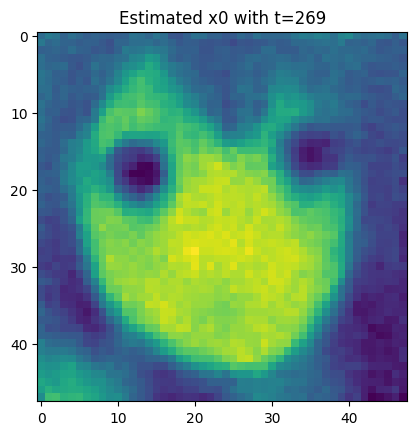

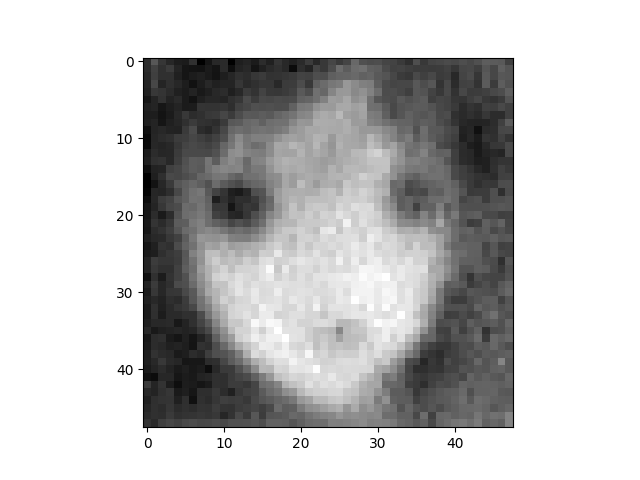

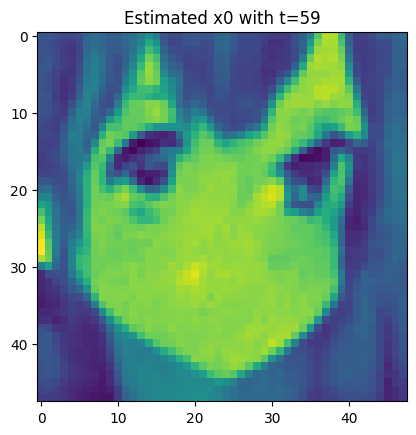

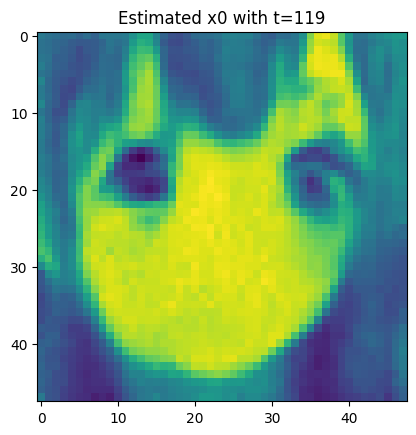

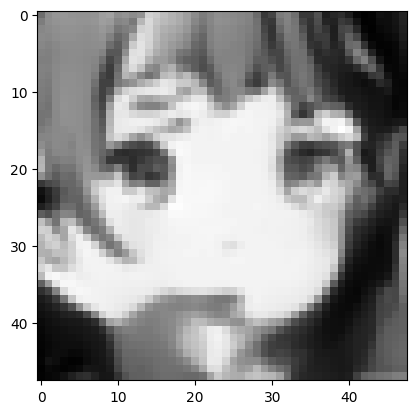

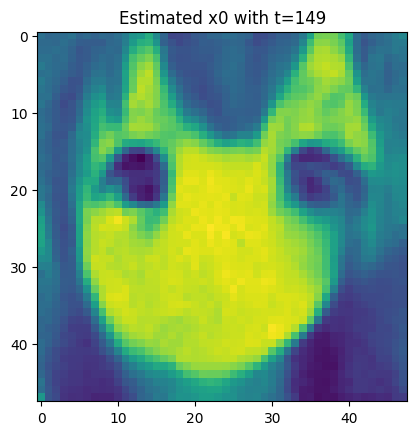

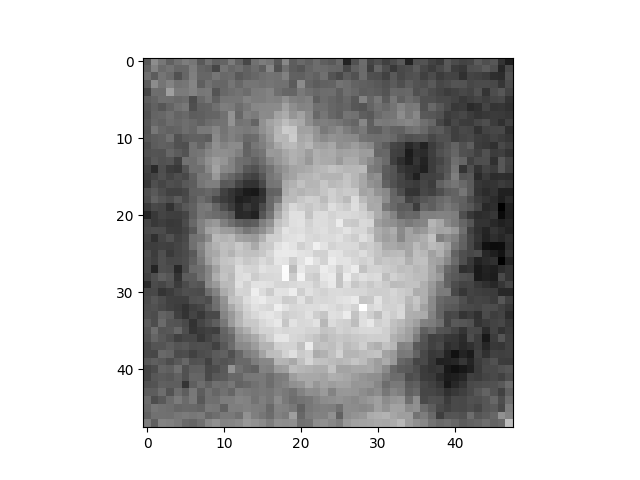

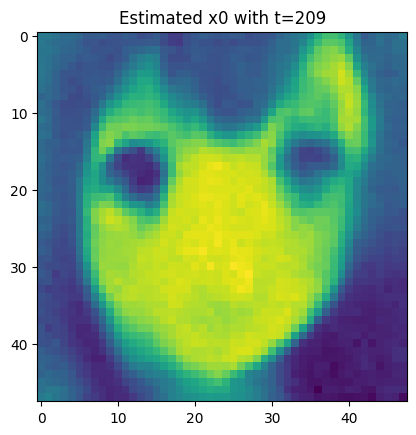

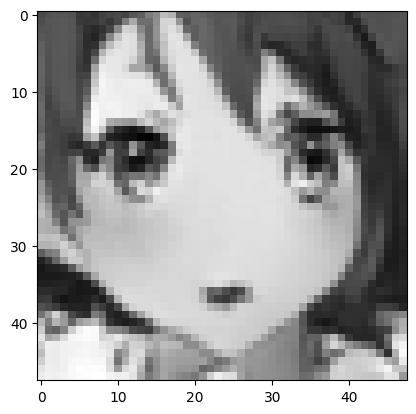

Estimate x_0

face 1

face 2

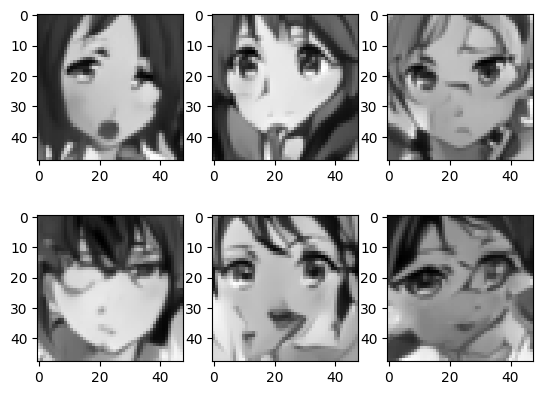

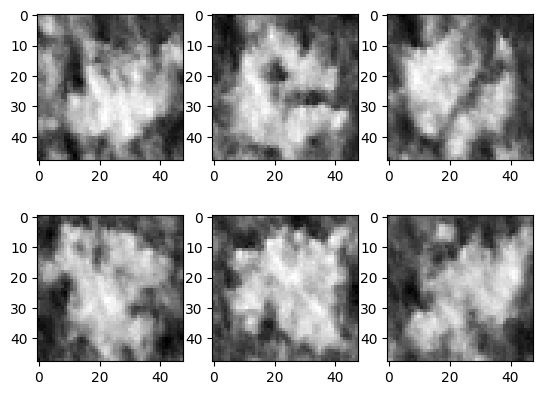

Only train one epoch on face 2

Use the model trained on face 1 and train it one epoch on face 2

Summary

• The main purpose of all generative models is to learn a distribution p_{\theta}(x_0) such that \begin{aligned} p_{\theta}(x_0)\approx q(x_0). \end{aligned}

• Our goal: Find \begin{aligned} \mu_{\theta}^*, \Sigma_{\theta}^* = \arg \min_{\mu_{\theta},\Sigma_{\theta}} D_{\mathtt{KL}} \bigl( q(x_0) \big\Vert p_{\theta}(x_0) \bigr) = \arg \min_{\mu_{\theta},\Sigma_{\theta}} \underbrace{\color{blue}{\mathbb E_{X_0\sim q(x_0)}[-\log p_{\theta}(X_0)]}}_{:=L}. \end{aligned}

• By some calculation, \begin{aligned} L &= \mathbb E_{X_0\sim q(x_0)} \biggl[ D_{\mathtt{KL}} \Bigl( \underline{q(x_T \vert x_0)} \big\Vert \underline{p(x_T)} \Bigr) \Big\vert_{x_0=X_0} \biggr] + \sum_{t=2}^T \underbrace{\mathbb E_{X_0,X_t\sim q(x_0,x_{t})} \biggl[ D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr)\Big \vert_{x_0,x_t=X_0,X_t} \biggr]}_{L_{t-1}} \cr & \qquad \qquad + \underbrace{\mathbb E_{X_0,X_1\sim q(x_0,x_1)} \bigl[ -\log {\color{blue}{p_{\theta}(X_0 \vert X_1)}} \bigr]}_{L_0}. \end{aligned}

• In DDPM, we choose the special \mu_{\theta},\Sigma_{\theta} so that \begin{aligned} D_{\mathtt{KL}} \Bigl( {\underline{\color{red}{q(x_{t-1} \vert x_t,x_0)}}} \big\Vert \underline{\color{blue}{p_{\theta}(x_{t-1}\vert x_t)} } \Bigr) = \frac{\beta_t^2}{2\sigma_t^2 \alpha_t (1-\overline{\alpha}_t)} \left\lVert \overline{\varepsilon}_t - \varepsilon_{\theta}(x_t,t) \right\rVert^2, \end{aligned} where {\color{red}{\varepsilon_{\theta}}} is our model to predict the real noise \overline{\varepsilon}_t by giving t,x_t.

  • Given t,x_t, \begin{aligned} \text{predict }\overline{\varepsilon}_t \iff {\color{blue}{\text{predict } X_0}}. \end{aligned}

Conclusions

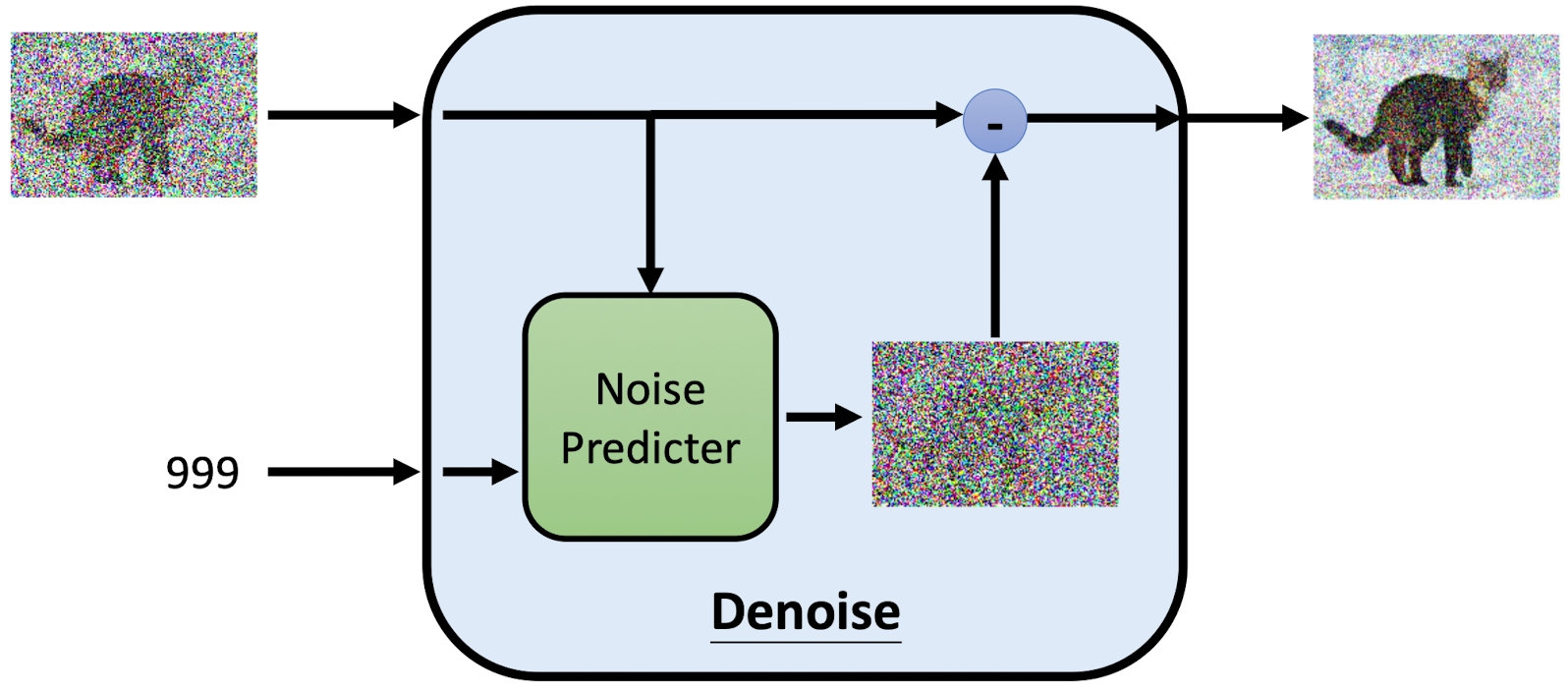

• DDPM: 不慢慢從 X_t 去得到 X_{t-1}, 而是預測 X_t 的噪聲 \overline{\varepsilon}_t (ResNet).
  • 等價於預測當下 X_0.
• DDPM 優點:
  • 多樣性高, 具有豐富數學理論.
• DDPM 缺點:
  • 生成很慢
    • Denoising Diffusion Implicit Models (DDIM).
  • Inception score 輸給 GAN.

DDPM 後續發展

Improved DDPM

• Recall that p_{\theta}(x_{t-1}\vert x_t) = \mathcal{N}(x_{t-1};\mu_{\theta}(x_t,t),\Sigma_{\theta}(x_t,t)).
  • DDPM 直接取 \Sigma_{\theta}(x_t,t)=\sigma_t^2 \mathbf{I}.
  • Improved DDPM 將 \Sigma_{\theta}(x_t,t) 令成可學習的參數.
• \beta schedule
• 衍生出 Diffusion Models Beat GANs on Image Synthesis, GLIDE, DALL·E.

Diffusion Models Beat GANs on Image Synthesis

• Adapted group normalization
• classifier guidance
  • 加速採樣
  • 衍生出 classifier-free guidance
    • used in GLIDE, DALL·E.

GLIDE

DALL·E

“An expressive oil painting of a basketball player dunking, depicted as an explosion of a nebula.”

DALL·E 2

DALL·E 3

Appendix

Table of Contents

• Denoising Diffusion Probabilistic Models (DDPM)

• To determine μ_θ,Σ_θ

• Training and Sampling

• Appendix

Multivariate normal distribution

Let X=[X_1,\cdots,X_n]^T\sim \mathcal{N}(\mu,\Sigma) in \mathbb R^n, where \mu \in \mathbb R^n and \Sigma \in \mathbb R^{n\times n} is a positive semi-definite matrix.

• For n=1, we rewrite X\sim \mathcal{N}(\mu,\sigma^2) in \mathbb R, where \mu,\sigma\in \mathbb R. Then \begin{aligned} f_X(x) = \frac{1}{\sqrt{2\pi \sigma^2}} \exp \Big\lbrace-\frac{1}{2}\cdot \frac{(x-\mu)^2}{\sigma^2} \Big\rbrace, \quad x \in \mathbb R. \end{aligned} Or, equivalently, there exists Z\sim \mathcal{N}(0,1) in \mathbb R such that \begin{aligned} X = \sigma Z + \mu. \end{aligned}

• For general n\in \mathbb N. \begin{aligned} f_{X}(x) = \frac{1}{\sqrt{(2\pi)^{n}\det(\Sigma)}}\exp\Bigl\lbrace -\frac{1}{2}(x-\mu)^T \Sigma^{-1}(x-\mu) \Bigr\rbrace, \quad x \in \mathbb R^n. \end{aligned}

  • If \Sigma = A A^T for some A\in \mathbb R^{n\times\ell}, then there exist Z_i\sim \mathcal{N}(0,1),i=1\sim \ell i.i.d. in \mathbb R such that \begin{aligned} X = AZ + \mu, \end{aligned} where Z=[Z_1,\cdots,Z_\ell]^T.

Forward process is a discretization of an SDE

• See Appendix B of Song et al. (2021).
• By Taylor’s theorem, \begin{aligned} X_{t+1} &= \sqrt{1-\beta_{t+1}} X_t + \sqrt{\beta_{t+1}} \varepsilon_{t+1}, \cr &\approx X_t - \frac{1}{2}\beta_{t+1}X_t + \sqrt{\beta_{t+1}} \varepsilon_{t+1}, \quad t=0,1,\cdots, T-1. \end{aligned}
• We scale t\in \lbrace 0,1,\cdots, T-1 \rbrace to [0,1] by \begin{aligned} \widetilde{X}_{t} = X_{t\cdot T}, \quad t = 0,\frac{1}{T},\cdots, \frac{T-1}{T}. \end{aligned} \widetilde{\beta}_t, \widetilde{\varepsilon}_t are the same.
• Let \Delta t = 1/T. If \beta_{t+1}\approx \beta_{t}, then \begin{aligned} \widetilde{X}_{t+\Delta t} \approx \widetilde{X}_t - \frac{1}{2} \cdot {\color{red}{\underbrace{\frac{\widetilde{\beta}_{t}}{\Delta t}}_{:=\beta(t)}}} \cdot \widetilde{X}_t \cdot \Delta t + \sqrt{\color{red}{\underbrace{\frac{\widetilde{\beta}_{t}}{\Delta t}}_{:=\beta(t)}}} \cdot {\color{blue}{\underbrace{\sqrt{\Delta t} \cdot \widetilde{\varepsilon}_{t+\frac{1}{T}}}_{\mathcal{N}(0,\Delta t)}}}, \quad t = 0,\frac{1}{T},\cdots , \frac{T-1}{T}. \end{aligned} Hence, \lbrace X_t\rbrace_{t=0}^T is a discretization of a continuous time process (\widetilde{X}_t)_{t\in [0,1]}, satisfying the SDE \begin{aligned} \mathrm{d} \widetilde{X}_t = -\frac{1}{2} \beta(t) \widetilde{X}_t \mathrm {d} t + \sqrt{ \beta(t) } \mathrm{d}B_t. \end{aligned}

KL-divergence

• 假設一個 random element X on \mathcal{X} 上有兩個 density q,p, 其中

  • q 是我們真正有的 density,

  • p=p_{\theta} 是我們 model 要逼近 q 的 density.

  有個衡量 q,p 差異性的是 \mathtt{KL}-divergence: \begin{aligned} D_{\mathtt{KL}}(q \Vert p) = \mathbb E_{X\sim q}\Bigl[ \log\frac{q(X)}{p(X)} \Bigr] = \int_{x\in \mathcal{X}} q(x) \log \frac{q(x)}{p(x)} \mathrm{d}x. \end{aligned}

• Minimize KL divergence \iff Maximize likelihood.

• For any p,q, D_{\mathtt{KL}}(q\Vert p) \geq 0.

  • D_{\mathtt{KL}}(q\Vert p) = 0 \iff q=p.

• KL-divergence 在 q,p 都是 normal 時有解析式.

  • If q\sim \mathcal{N}(\mu_1,\Sigma_1), p\sim \mathcal{N}(\mu_2,\Sigma_2) in \mathbb R^n, then \begin{aligned} D_{\mathtt{KL}}(q\Vert p) = \frac{1}{2} \Bigl( \log\frac{\left\lvert \Sigma_2 \right\rvert}{\left\lvert \Sigma_1 \right\rvert} - n + \operatorname{tr}(\Sigma_2^{-1}\Sigma_1) + (\mu_2-\mu_1)^T \Sigma_2^{-1} (\mu_2-\mu_1) \Bigr). \end{aligned}

Minimize KL divergence \iff Maximize likelihood.

Let \lbrace x^{(1)},\cdots, x^{(n)} \rbrace be samples from q. Then \begin{aligned} \theta^{\star} &= \arg \max_{\theta} \log \prod_{i=1}^n p_{\theta}(x^{(i)}) = \arg \max_{\theta} \sum_{i=1}^n \log p_{\theta}(x^{(i)}) \cr &= \arg \max_{\theta} \frac{1}{n}\sum_{i=1}^n \log p_{\theta}(x^{(i)}) \stackrel{\text{SLLN}}{\approx} \arg \max_{\theta} \mathbb E_{X\sim q}\bigl[ \log p_{\theta}(X) \bigr] \cr &= \arg \max_{\theta} \int_{x} q(x) \log p_{\theta}(x) \mathrm{d}x - \int_{x} q(x) \log q(x) \mathrm{d}x \cr &= \arg \max_{\theta} \int_{x} q(x) \log\frac{p_{\theta}(x)}{q(x)} \mathrm{d}x = \arg\min_{\theta} D_{\mathtt{KL}} (q \Vert p_{\theta}). \end{aligned}

Images from

• https://yang-song.net/blog/2021/score/
• https://lilianweng.github.io/posts/2021-07-11-diffusion-models/
• https://towardsdatascience.com/understanding-diffusion-probabilistic-models-dpms-1940329d6048
• https://cvpr2022-tutorial-diffusion-models.github.io
• https://speech.ee.ntu.edu.tw/~hylee/ml/2023-spring.php

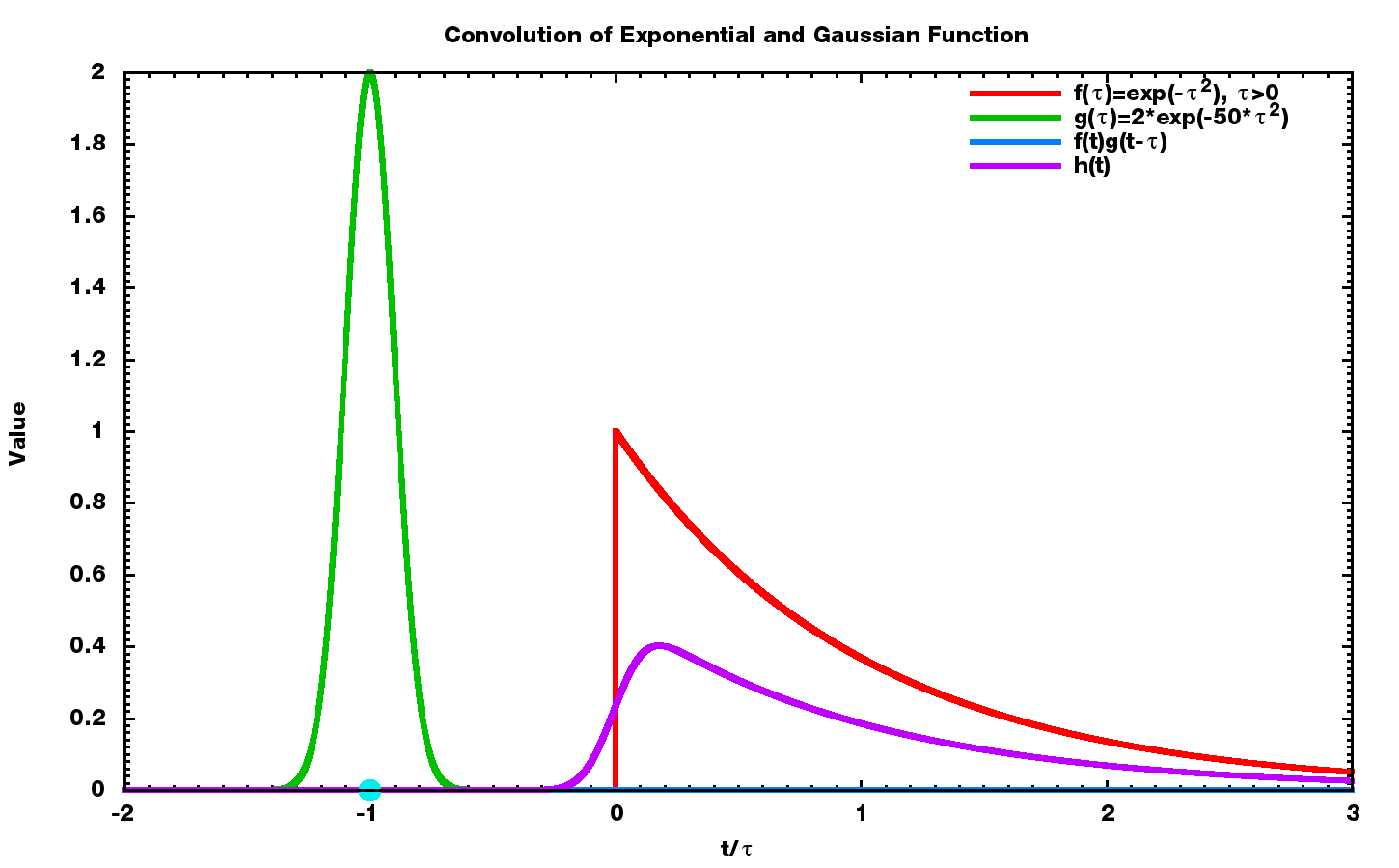

• https://blog.sciencenet.cn/blog-548663-860740.html
• https://huggingface.co
• https://zh.wikipedia.org/zh-tw/吹響吧！上低音號

Reference

Anderson, Brian D. O. 1982. “Reverse-Time Diffusion Equation Models.” Stochastic Processes and Their Applications 12 (3): 313–26. https://doi.org/https://doi.org/10.1016/0304-4149(82)90051-5.

Ho, Jonathan, Ajay Jain, and Pieter Abbeel. 2020. “Denoising Diffusion Probabilistic Models.” Advances in Neural Information Processing Systems 33: 6840–51.

Sohl-Dickstein, Jascha, Eric Weiss, Niru Maheswaranathan, and Surya Ganguli. 2015. “Deep Unsupervised Learning Using Nonequilibrium Thermodynamics.” In Proceedings of the 32nd International Conference on Machine Learning, edited by Francis Bach and David Blei, 37:2256–65. Proceedings of Machine Learning Research. Lille, France: PMLR. https://proceedings.mlr.press/v37/sohl-dickstein15.html.

Song, Yang, Jascha Sohl-Dickstein, Diederik P Kingma, Abhishek Kumar, Stefano Ermon, and Ben Poole. 2021. “Score-Based Generative Modeling Through Stochastic Differential Equations.” In International Conference on Learning Representations. https://openreview.net/forum?id=PxTIG12RRHS.
